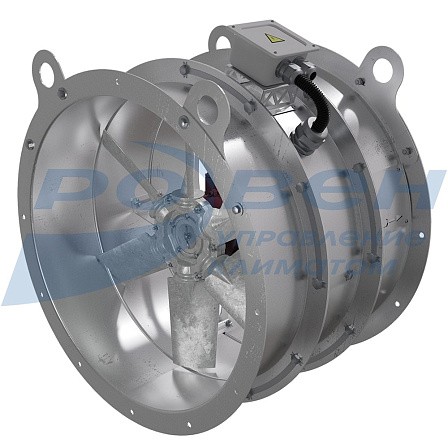

Вентилятор осевой РОСА-SMF
Описание
- Осевые вентиляторы дымоудаления
- Предназначены для эффективного удаления возникающих при пожаре дымовоздушных смесей в системах противодымной вентиляции
- Монтаж вне обслуживаемого помещения
- Не применимы в помещениях категории А и Б по НПБ 105-03

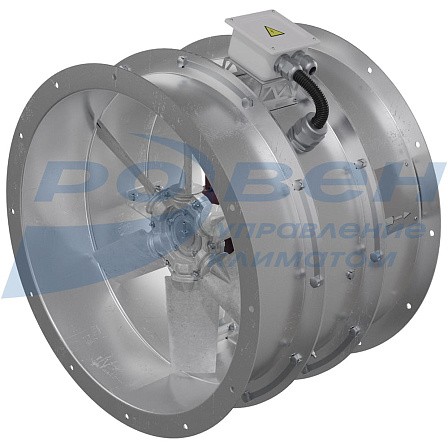

Конструктив
- Тип корпуса 10.20 - составной цилиндрический корпус из оцинкованной стали
- Рабочее колесо – осевая крыльчатка из алюминиевого сплава
- Направление потока: IW - от колеса на двигатель, MW - от двигателя на колесо
Двигатель
- Трехфазный асинхронный электродвигатель
- Степень защиты электродвигателя IP 44/54
- Специальная система тепловой защиты электродвигателя
Условия эксплуатации
- Климатическое исполнение по ГОСТ 15150-69: У1 или У2 (для эксплуатации на открытом воздухе или под навесом)
- Температура окружающей среды от -45°С до +40°С
- Исполнение (ДУ400) дымоудаление
- Температура перемещаемой среды до 400°С в течение 120 минут
- Применение вентиляторов для обслуживания категорий А и Б по взрывопожарной опасности согласно НПБ 105-03 − не допускается
- Перемещаемая среда не должна содержать:
- пары и газы с агрессивностью к металлам, покрытиям и изоляции выше агрессивности воздуха

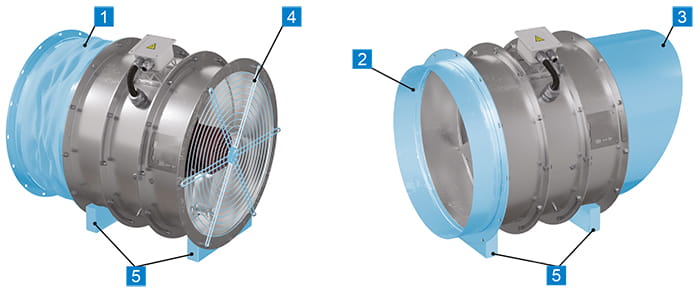

Дополнительная комплектация
1 - Вставка гибкая ВГК-РОСА
2 - Переходник РОСА
3 - Козырек РОСА
4 - Решетка защитная БАСКЕТ-РОСА
5 - Монтажная опора МОП
* Дополнительные комплектующие в комплект поставки не входят.
Полная информация о вентиляторах РОСА-SMF в электронном pdf-каталоге по ссылке во вкладке "Характеристики".
Габаритные и присоединительные размеры
|
№ вент. |
Наименование |
D1, мм |
D2, мм |
D3, мм |
L, мм |
H, мм |
n, отв |
|
4,0 |
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/18-А/0,25/1500/220-380/1-У2 |
400 |
436 |
460 |
515 |
553 |
8 |
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/22-А/0,37/1500/220-380/1-У2 |
400 |
436 |
460 |
515 |
553 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/77-А/0,75/3000/220-380/1-У2 |
400 |
436 |
460 |
515 |
553 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/81-А/1,1/3000/220-380/1-У2 |
400 |
436 |
460 |
515 |
553 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/13-А/1,5/3000/220-380/1-У2 |
400 |
436 |
460 |
515 |
553 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/17-А/2,2/3000/220-380/1-У2 |
400 |
436 |
460 |
515 |
553 |
8 |
|
|
4,5 |
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/46-А/0,25/1500/220-380/1-У2 |
450 |
486 |
510 |
515 |
602 |
8 |
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/18-А/0,37/1500/220-380/1-У2 |
450 |
486 |
510 |
515 |
602 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/70-А/0,55/1500/220-380/1-У2 |
450 |
486 |
510 |
515 |
602 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/73-А/0,75/3000/220-380/1-У2 |
450 |
486 |
510 |
515 |
602 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/77-А/1,1/3000/220-380/1-У2 |
450 |
486 |
510 |
515 |
602 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/37-А/1,5/3000/220-380/1-У2 |
450 |
486 |
510 |
515 |
602 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/85-А/2,2/3000/220-380/1-У2 |
450 |
486 |
510 |
515 |
602 |
8 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/61-А/3,0/3000/220-380/1-У2 |
450 |
486 |
510 |
515 |
602 |
8 |
|
|
5,0 |
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/38-А/0,25/1500/220-380/1-У2 |
500 |
536 |
560 |
515 |
655 |
12 |
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/14-А/0,37/1500/220-380/1-У2 |
500 |
536 |
560 |
515 |
655 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/18-А/0,55/1500/220-380/1-У2 |
500 |
536 |
560 |
515 |
655 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/25-А/0,75/3000/220-380/1-У2 |
500 |
536 |
560 |
515 |
655 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/73-А/1,1/3000/220-380/1-У2 |
500 |
536 |
560 |
515 |
655 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/77-А/1,5/3000/220-380/1-У2 |
500 |
536 |
560 |
515 |
655 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/81-А/2,2/3000/220-380/1-У2 |
500 |
536 |
560 |
515 |
655 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/09-А/3,0/3000/220-380/1-У2 |
500 |
536 |
560 |
515 |
655 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/13-А/4,0/3000/220-380/1-У2 |
500 |
536 |
560 |
550 |
655 |
12 |
|
|
5,6 |
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/50-А/0,37/1500/220-380/1-У2 |
560 |
620 |
660 |
515 |
742 |
12 |
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/58-А/0,55/1500/220-380/1-У2 |
560 |
620 |
660 |
515 |
742 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/62-А/0,75/1500/220-380/1-У2 |
560 |
620 |
660 |
515 |
742 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/25-А/1,1/3000/220-380/1-У2 |
560 |
620 |
660 |
515 |
742 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/73-А/1,5/3000/220-380/1-У2 |
560 |
620 |
660 |
515 |
742 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/77-А/2,2/3000/220-380/1-У2 |
560 |
620 |
660 |
515 |
742 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/81-А/3,0/3000/220-380/1-У2 |
560 |
620 |
660 |
515 |
742 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/09-А/4,0/3000/220-380/1-У2 |
560 |
620 |
660 |
550 |
742 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/13-А/5,5/3000/220-380/1-У2 |
560 |
620 |
660 |
550 |
742 |
12 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/17-А/7,5/3000/220-380/1-У2 |
560 |
620 |
660 |
630 |
742 |
12 |
|
|
6,3 |
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/78-А/0,55/1500/220-380/1-У2 |
630 |
690 |
730 |
515 |
799 |
12 |
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/82-А/0,75/1500/220-380/1-У2 |
630 |
690 |
730 |
515 |
799 |
12 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/86-А/1,1/1500/220-380/1-У2 |
630 |
690 |
730 |
515 |
799 |
12 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/90-А/1,5/1500/220-380/1-У2 |
630 |
690 |
730 |
515 |
799 |
12 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/97-А/2,2/3000/220-380/1-У2 |
630 |
690 |
730 |
515 |
799 |
12 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/101-А/3,0/3000/220-380/1-У2 |
630 |
690 |
730 |
515 |
799 |
12 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/57-А/4,0/3000/220-380/1-У2 |
630 |
690 |
730 |
550 |
799 |
12 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/317-А/5,5/3000/220-380/1-У2 |
630 |
690 |
730 |
550 |
799 |
12 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/305-А/7,5/3000/220-380/1-У2 |
630 |
690 |
730 |
630 |
799 |
12 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/85-А/11,0/3000/380-660/1-У2 |
630 |
690 |
730 |
630 |
799 |
12 |
|
|
7,1 |
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/74-А/0,75/1500/220-380/1-У2 |
710 |
770 |
810 |
515 |
879 |
16 |
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/82-А/1,1/1500/220-380/1-У2 |
710 |
770 |
810 |
515 |
879 |
16 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/182-А/1,5/1500/220-380/1-У2 |
710 |
770 |
810 |
515 |
879 |
16 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/90-А/2,2/1500/220-380/1-У2 |
710 |
770 |
810 |
515 |
879 |
16 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/94-А/3,0/1500/220-380/1-У2 |
710 |
770 |
810 |
550 |
879 |
16 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/97-А/4,0/3000/220-380/1-У2 |
710 |
770 |
810 |
550 |
879 |
16 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/101-А/5,5/3000/220-380/1-У2 |
710 |
770 |
810 |
550 |
879 |
16 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/77-А/7,5/3000/220-380/1-У2 |
710 |
770 |
810 |
630 |
879 |
16 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/81-А/11,0/3000/380-660/1-У2 |
710 |
770 |
810 |
630 |
879 |
16 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/181-А/15,0/3000/380-660/1-У2 |
710 |
770 |
810 |
740 |
879 |
16 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/201-А/18,5/3000/380-660/1-У2 |
710 |
770 |
810 |
740 |
879 |
16 |
|
|
8,0 |
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/30-А/1,1/1500/220-380/1-У2 |
800 |
860 |
900 |
515 |
969 |
16 |
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/34-А/1,5/1500/220-380/1-У2 |
800 |
860 |
900 |
515 |
969 |
16 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/38-А/2,2/1500/220-380/1-У2 |
800 |
860 |
900 |
515 |
969 |
16 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/42-А/3,0/1500/220-380/1-У2 |
800 |
860 |
900 |
550 |
969 |
16 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/46-А/4,0/1500/220-380/1-У2 |
800 |
860 |
900 |
550 |
969 |
16 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/22-А/5,5/1500/220-380/1-У2 |
800 |
860 |
900 |
630 |
969 |
16 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/77-А/7,5/3000/220-380/1-У2 |
800 |
860 |
900 |
630 |
969 |
16 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/81-А/11,0/3000/380-660/1-У2 |
800 |
860 |
900 |
630 |
969 |
16 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/85-А/15,0/3000/380-660/1-У2 |
800 |
860 |
900 |
740 |
969 |
16 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/125-А/18,5/3000/380-660/1-У2 |
800 |
860 |
900 |
740 |
969 |
16 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/89-А/22,0/3000/380-660/1-У2 |
800 |
860 |
900 |
820 |
969 |
16 |
|
|
9,0 |
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/146-А/1,5/1500/220-380/1-У2 |
900 |
960 |
1035 |
515 |
1104 |
16 |
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/150-А/2,2/1500/220-380/1-У2 |
900 |
960 |
1035 |
515 |
1104 |
16 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/410-А/3,0/1500/220-380/1-У2 |
900 |
960 |
1035 |
550 |
1104 |
16 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/414-А/4,0/1500/220-380/1-У2 |
900 |
960 |
1035 |
550 |
1104 |
16 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/158-А/5,5/1500/220-380/1-У2 |
900 |
960 |
1035 |
630 |
1104 |
16 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/162-А/7,5/1500/380-660/1-У2 |
900 |
960 |
1035 |
630 |
1104 |
16 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/22-А/11,0/1500/380-660/1-У2 |
900 |
960 |
1035 |
630 |
1104 |
16 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/401-А/15,0/3000/380-660/1-У2 |
900 |
960 |
1035 |
740 |
1104 |
16 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/177-А/18,5/3000/380-660/1-У2 |
900 |
960 |
1035 |
740 |
1104 |
16 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/405-А/22,0/3000/380-660/1-У2 |
900 |
960 |
1035 |
820 |
1104 |
16 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/185-А/30,0/3000/380-660/1-У2 |
900 |
960 |
1035 |
820 |
1104 |
16 |
|
|
10,0 |
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/122-А/3,0/1500/220-380/1-У2 |
1000 |
1070 |
1135 |
550 |
1204 |
16 |
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/126-А/4,0/1500/220-380/1-У2 |
1000 |
1070 |
1135 |
550 |
1204 |
16 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/130-А/5,5/1500/220-380/1-У2 |
1000 |
1070 |
1135 |
630 |
1204 |
16 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/134-А/7,5/1500/380-660/1-У2 |
1000 |
1070 |
1135 |
630 |
1204 |
16 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/142-А/11,0/1500/380-660/1-У2 |
1000 |
1070 |
1135 |
630 |
1204 |
16 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/86-А/15,0/1500/380-660/1-У2 |
1000 |
1070 |
1135 |
740 |
1204 |
16 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/90-А/18,5/1500/380-660/1-У2 |
1000 |
1070 |
1135 |
740 |
1204 |
16 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/94-А/22,0/1500/380-660/1-У2 |
1000 |
1070 |
1135 |
820 |
1204 |
16 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/230-А/30,0/1500/380-660/1-У2 |
1000 |
1070 |
1135 |
820 |
1204 |
16 |
|
|
11,2 |
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/123-А/3,0/1000/220-380/1-У2 |
1120 |
1195 |
1255 |
630 |
1324 |
16 |
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/127-А/4,0/1000/220-380/1-У2 |
1120 |
1195 |
1255 |
630 |
1324 |
16 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/15-А/5,5/1000/380-660/1-У2 |
1120 |
1195 |
1255 |
630 |
1324 |
16 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/30-А/7,5/1500/380-660/1-У2 |
1120 |
1195 |
1255 |
630 |
1324 |
16 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/122-А/11,0/1500/380-660/1-У2 |
1120 |
1195 |
1255 |
630 |
1324 |
16 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/126-А/15,0/1500/380-660/1-У2 |
1120 |
1195 |
1255 |
740 |
1324 |
16 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/226-А/18,5/1500/380-660/1-У2 |
1120 |
1195 |
1255 |
740 |
1324 |
16 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/134-А/22,0/1500/380-660/1-У2 |
1120 |
1195 |
1255 |
820 |
1324 |
16 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/230-А/30,0/1500/380-660/1-У2 |
1120 |
1195 |
1255 |
820 |
1324 |
16 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/234-А/37,0/1500/380-660/1-У2 |
1120 |
1195 |
1255 |
950 |
1324 |
16 |
|
|
12,5 |
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/55-А/3,0/1000/220-380/1-У2 |
1250 |
1320 |
1385 |
630 |
1454 |
16 |
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/59-А/4,0/1000/220-380/1-У2 |
1250 |
1320 |
1385 |
630 |
1454 |
16 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/63-А/5,5/1000/380-660/1-У2 |
1250 |
1320 |
1385 |
630 |
1454 |
16 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/67-А/7,5/1000/380-660/1-У2 |
1250 |
1320 |
1385 |
630 |
1454 |
16 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/02-А/11,0/1500/380-660/1-У2 |
1250 |
1320 |
1385 |
630 |
1454 |
16 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/30-А/15,0/1500/380-660/1-У2 |
1250 |
1320 |
1385 |
740 |
1454 |
16 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/06-А/18,5/1500/380-660/1-У2 |
1250 |
1320 |
1385 |
740 |
1454 |
16 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/82-А/22,0/1500/380-660/1-У2 |
1250 |
1320 |
1385 |
820 |
1454 |
16 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/86-А/30,0/1500/380-660/1-У2 |
1250 |
1320 |
1385 |
820 |
1454 |
16 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/14-А/37,0/1500/380-660/1-У2 |
1250 |
1320 |
1385 |
950 |
1454 |
16 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/18-А/45,0/1500/380-660/1-У2 |
1250 |
1320 |
1385 |
950 |
1454 |
16 |
Технические характеристики
|
№ вент. |
Наименование |
N, кВт |
n, об/мин |
Ток, А при 380В |
Масса, кг |
|
4,,0 |
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/18-А/0,25/1500/220-380 |
0,25 |
1410 |
0,87 |
39 |
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/22-А/0,37/1500/220-380 |
0,37 |
1410 |
1,15 |
39 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/77-А/0,75/3000/220-380 |
0,75 |
2820 |
1,92 |
38 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/81-А/1,1/3000/220-380 |
1,1 |
2820 |
2,71 |
39 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/13-А/1,5/3000/220-380 |
1,5 |
2860 |
3,52 |
41 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/17-А/2,2/3000/220-380 |
2,2 |
2860 |
4,91 |
42 |
|
|
4,5 |
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/46-А/0,25/1500/220-380 |
0,25 |
1410 |
0,87 |
40 |
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/18-А/0,37/1500/220-380 |
0,37 |
1410 |
1,15 |
41 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/70-А/0,55/1500/220-380 |
0,55 |
1410 |
1,66 |
41 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/73-А/0,75/3000/220-380 |
0,75 |
2820 |
1,92 |
41 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/77-А/1,1/3000/220-380 |
1,1 |
2820 |
2,71 |
41 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/37-А/1,5/3000/220-380 |
1,5 |
2860 |
3,52 |
42 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/85-А/2,2/3000/220-380 |
2,2 |
2860 |
4,91 |
44 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/61-А/3,0/3000/220-380 |
3,0 |
2875 |
6,62 |
46 |
|
|
5,0 |
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/38-А/0,25/1500/220-380 |
0,25 |
1410 |
0,87 |
42 |
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/14-А/0,37/1500/220-380 |
0,37 |
1410 |
1,15 |
43 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/18-А/0,55/1500/220-380 |
0,55 |
1410 |
1,66 |
42 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/25-А/0,75/3000/220-380 |
0,75 |
2820 |
1,92 |
42 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/73-А/1,1/3000/220-380 |
1,1 |
2820 |
2,71 |
43 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/77-А/1,5/3000/220-380 |
1,5 |
2860 |
3,52 |
45 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/81-А/2,2/3000/220-380 |
2,2 |
2860 |
4,91 |
46 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/09-А/3,0/3000/220-380 |
3,0 |
2875 |
6,62 |
48 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/13-А/4,0/3000/220-380 |
4,0 |
2880 |
8,72 |
57 |
|
|
5,6 |
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/50-А/0,37/1500/220-380 |
0,37 |
1410 |
1,15 |
50 |
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/58-А/0,55/1500/220-380 |
0,55 |
1410 |
1,66 |
50 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/62-А/0,75/1500/220-380 |
0,75 |
2820 |
1,92 |
50 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/25-А/1,1/3000/220-380 |
1,1 |
2820 |
2,71 |
49 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/73-А/1,5/3000/220-380 |
1,5 |
2860 |
3,52 |
51 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/77-А/2,2/3000/220-380 |
2,2 |
2860 |
4,91 |
52 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/81-А/3,0/3000/220-380 |
3,0 |
2875 |
6,62 |
54 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/09-А/4,0/3000/220-380 |
4,0 |
2880 |
8,72 |
63 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/13-А/5,5/3000/220-380 |
5,5 |
2890 |
11,4 |
65 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/17-А/7,5/3000/220-380 |
7,5 |
2910 |
15,2 |
76 |
|
|
6,3 |
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/78-А/0,55/1500/220-380 |
0,55 |
1410 |
1,66 |
60 |
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/82-А/0,75/1500/220-380 |
0,75 |
1410 |
2,17 |
60 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/86-А/1,1/1500/220-380 |
1,1 |
1420 |
2,93 |
62 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/90-А/1,5/1500/220-380 |
1,5 |
1420 |
3,79 |
63 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/97-А/2,2/3000/220-380 |
2,2 |
2860 |
4,91 |
62 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/101-А/3,0/3000/220-380 |
3,0 |
2875 |
6,62 |
64 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/57-А/4,0/3000/220-380 |
4,0 |
2880 |
8,72 |
75 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/317-А/5,5/3000/220-380 |
5,5 |
2890 |
11,4 |
75 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/305-А/7,5/3000/220-380 |
7,5 |
2910 |
15,2 |
88 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/85-А/11,0/3000/380-660 |
11,0 |
2910 |
21,8 |
116 |
|
|
7,1 |
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/74-А/0,75/1500/220-380 |
0,75 |
1410 |
2,17 |
64 |
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/82-А/1,1/1500/220-380 |
1,1 |
1420 |
2,93 |
78 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/182-А/1,5/1500/220-380 |
1,5 |
1420 |
3,79 |
79 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/90-А/2,2/1500/220-380 |
2,2 |
1420 |
5,36 |
82 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/94-А/3,0/1500/220-380 |
3,0 |
1430 |
7,21 |
95 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/97-А/4,0/3000/220-380 |
4,0 |
1440 |
9,04 |
90 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/101-А/5,5/3000/220-380 |
5,5 |
2890 |
11,4 |
91 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/77-А/7,5/3000/220-380 |
7,5 |
2910 |
15,2 |
105 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/81-А/11,0/3000/380-660 |
11,0 |
2910 |
21,8 |
133 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/181-А/15,0/3000/380-660 |
15,0 |
2940 |
29,4 |
168 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/201-А/18,5/3000/380-660 |
18,5 |
2940 |
35,9 |
195 |
|
|
8,0 |
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/30-А/1,1/1500/220-380 |
1,1 |
1420 |
2,93 |
72 |
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/34-А/1,5/1500/220-380 |
1,5 |
1420 |
3,79 |
73 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/38-А/2,2/1500/220-380 |
2,2 |
1420 |
5,36 |
75 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/42-А/3,0/1500/220-380 |
3,0 |
1430 |
7,21 |
89 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/46-А/4,0/1500/220-380 |
4,0 |
1440 |
9,04 |
92 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/22-А/5,5/1500/220-380 |
5,5 |
1450 |
12,1 |
101 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/77-А/7,5/3000/220-380 |
7,5 |
2910 |
15,2 |
99 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/81-А/11,0/3000/380-660 |
11,0 |
2910 |
21,8 |
128 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/85-А/15,0/3000/380-660 |
15,0 |
2940 |
29,4 |
163 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/125-А/18,5/3000/380-660 |
18,5 |
2940 |
35,9 |
188 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/89-А/22,0/3000/380-660 |
22,0 |
2945 |
42 |
232 |
|
|
9,0 |
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/146-А/1,5/1500/220-380 |
1,5 |
1420 |
3,79 |
100 |
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/150-А/2,2/1500/220-380 |
2,2 |
1420 |
5,36 |
102 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/410-А/3,0/1500/220-380 |
3,0 |
1430 |
7,21 |
117 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/414-А/4,0/1500/220-380 |
4,0 |
1440 |
9,04 |
119 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/158-А/5,5/1500/220-380 |
5,5 |
1450 |
12,1 |
129 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/162-А/7,5/1500/380-660 |
7,5 |
1450 |
15,8 |
154 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/22-А/11,0/1500/380-660 |
11,0 |
1450 |
22,9 |
163 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/401-А/15,0/3000/380-660 |
15,0 |
2940 |
29,4 |
188 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/177-А/18,5/3000/380-660 |
18,5 |
2940 |
35,9 |
213 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/405-А/22,0/3000/380-660 |
22,0 |
2945 |
42 |
258 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/185-А/30,0/3000/380-660 |
30,0 |
2945 |
56,3 |
269 |
|
|
10,0 |
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/122-А/3,0/1500/220-380 |
3,0 |
1430 |
7,21 |
116 |
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/126-А/4,0/1500/220-380 |
4,0 |
1440 |
9,04 |
118 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/130-А/5,5/1500/220-380 |
5,5 |
1450 |
12,1 |
128 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/134-А/7,5/1500/380-660 |
7,5 |
1450 |
15,8 |
153 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/142-А/11,0/1500/380-660 |
11,0 |
1450 |
22,9 |
156 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/86-А/15,0/1500/380-660 |
15,0 |
1460 |
30,5 |
217 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/90-А/18,5/1500/380-660 |
18,5 |
1460 |
37,2 |
232 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/94-А/22,0/1500/380-660 |
22,0 |
1465 |
44 |
273 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/230-А/30,0/1500/380-660 |
30,0 |
1470 |
58,6 |
292 |
|
|
11,2 |
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/123-А/3,0/1000/220-380 |
3,0 |
960 |
7,82 |
149 |
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/127-А/4,0/1000/220-380 |
4,0 |
960 |
9,88 |
153 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/15-А/5,5/1000/380-660 |
5,5 |
960 |
13,1 |
169 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/30-А/7,5/1500/380-660 |
7,5 |
1450 |
15,8 |
176 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/122-А/11,0/1500/380-660 |
11,0 |
1450 |
22,9 |
181 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/126-А/15,0/1500/380-660 |
15,0 |
1460 |
30,5 |
234 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/226-А/18,5/1500/380-660 |
18,5 |
1460 |
37,2 |
256 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/134-А/22,0/1500/380-660 |
22,0 |
1465 |
44,0 |
299 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/230-А/30,0/1500/380-660 |
30,0 |
1470 |
58,6 |
309 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/234-А/37,0/1500/380-660 |
37,0 |
1470 |
71,9 |
390 |
|
|
12,5 |
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/55-А/3,0/1000/220-380 |
3,0 |
960 |
7,82 |
206 |
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/59-А/4,0/1000/220-380 |
4,0 |
960 |
9,88 |
211 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/63-А/5,5/1000/380-660 |
5,5 |
960 |
13,1 |
257 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/67-А/7,5/1000/380-660 |
7,5 |
960 |
17,5 |
266 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/02-А/11,0/1500/380-660 |
11,0 |
1450 |
22,9 |
275 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/30-А/15,0/1500/380-660 |
15,0 |
1460 |
30,5 |
328 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/06-А/18,5/1500/380-660 |
18,5 |
1460 |
37,2 |
347 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/82-А/22,0/1500/380-660 |
22,0 |
1465 |
44,0 |
496 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/86-А/30,0/1500/380-660 |
30,0 |
1470 |
58,6 |
505 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/14-А/37,0/1500/380-660 |
37,0 |
1470 |
71,9 |
632 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/18-А/45,0/1500/380-660 |
45,0 |
1470 |
87,0 |
637 |
Шумовые характеристики
|
№ вент. |
Наименование |
Уровень звуковой мощности, дБ в октавных полосах частот, Гц |
Общий, дБа |
|||||||
|
63 |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
|||
|
4,0 |
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/18-А/0,25/1500/220-380 |
73 |
70 |
68 |
64 |
64 |
63 |
62 |
54 |
77 |
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/22-А/0,37/1500/220-380 |
73 |
70 |
68 |
64 |
66 |
64 |
63 |
56 |
76 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/77-А/0,75/3000/220-380 |
88 |
84 |
83 |
83 |
84 |
81 |
82 |
75 |
93 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/81-А/1,1/3000/220-380 |
91 |
87 |
86 |
83 |
82 |
80 |
80 |
74 |
94 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/13-А/1,5/3000/220-380 |
91 |
87 |
86 |
83 |
82 |
80 |
80 |
74 |
95 |
|
|
РОСА-SMF/10.20L/IW-4,0-ДУ400/120м-R3L/4,0/AL/17-А/2,2/3000/220-380 |
90 |
87 |
85 |
81 |
81 |
80 |
79 |
71 |
93 |
|
|
4,5 |
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/46-А/0,25/1500/220-380 |
76 |
73 |
71 |
68 |
69 |
67 |
67 |
62 |
80 |
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/18-А/0,37/1500/220-380 |
77 |
74 |
72 |
68 |
68 |
67 |
65 |
57 |
80 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/70-А/0,55/1500/220-380 |
77 |
74 |
72 |
69 |
69 |
68 |
67 |
59 |
81 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/73-А/0,75/3000/220-380 |
86 |
87 |
93 |
95 |
92 |
86 |
85 |
79 |
99 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/77-А/1,1/3000/220-380 |
90 |
86 |
85 |
85 |
86 |
83 |
84 |
77 |
95 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/37-А/1,5/3000/220-380 |
89 |
86 |
84 |
80 |
80 |
80 |
80 |
72 |
93 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/85-А/2,2/3000/220-380 |
91 |
88 |
86 |
82 |
82 |
82 |
82 |
74 |
94 |
|
|
РОСА-SMF/10.20L/IW-4,5-ДУ400/120м-R3L/4,5/AL/61-А/3,0/3000/220-380 |
93 |
90 |
88 |
87 |
88 |
87 |
84 |
75 |
97 |
|
|
5,0 |
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/38-А/0,25/1500/220-380 |
75 |
72 |
70 |
66 |
66 |
66 |
66 |
58 |
78 |
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/14-А/0,37/1500/220-380 |
77 |
74 |
72 |
70 |
70 |
69 |
67 |
58 |
81 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/18-А/0,55/1500/220-380 |
79 |
76 |
74 |
70 |
70 |
69 |
67 |
59 |
82 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/25-А/0,75/3000/220-380 |
85 |
86 |
92 |
94 |
91 |
85 |
84 |
78 |
99 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/73-А/1,1/3000/220-380 |
88 |
88 |
93 |
96 |
95 |
89 |
88 |
82 |
101 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/77-А/1,5/3000/220-380 |
92 |
88 |
87 |
87 |
88 |
85 |
86 |
79 |
97 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/81-А/2,2/3000/220-380 |
93 |
90 |
88 |
85 |
85 |
84 |
85 |
78 |
97 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/09-А/3,0/3000/220-380 |
96 |
93 |
92 |
91 |
91 |
87 |
85 |
77 |
101 |
|
|
РОСА-SMF/10.20L/IW-5,0-ДУ400/120м-R3L/5,0/AL/13-А/4,0/3000/220-380 |
94 |
91 |
89 |
87 |
87 |
86 |
84 |
75 |
98 |
|
|
5,6 |
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/50-А/0,37/1500/220-380 |
75 |
86 |
84 |
85 |
82 |
77 |
75 |
69 |
91 |
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/58-А/0,55/1500/220-380 |
79 |
81 |
85 |
82 |
82 |
78 |
75 |
67 |
90 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/62-А/0,75/1500/220-380 |
82 |
79 |
77 |
76 |
77 |
76 |
73 |
64 |
86 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/25-А/1,1/3000/220-380 |
87 |
88 |
94 |
96 |
93 |
87 |
86 |
80 |
100 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/73-А/1,5/3000/220-380 |
90 |
89 |
95 |
97 |
96 |
91 |
89 |
83 |
102 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/77-А/2,2/3000/220-380 |
94 |
90 |
89 |
89 |
90 |
87 |
88 |
81 |
99 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/81-А/3,0/3000/220-380 |
94 |
91 |
89 |
86 |
86 |
85 |
86 |
79 |
98 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/09-А/4,0/3000/220-380 |
98 |
95 |
94 |
93 |
93 |
89 |
87 |
79 |
102 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/13-А/5,5/3000/220-380 |
96 |
93 |
91 |
89 |
89 |
88 |
86 |
77 |
100 |
|
|
РОСА-SMF/10.20L/IW-5,6-ДУ400/120м-R3L/5,6/AL/17-А/7,5/3000/220-380 |
98 |
95 |
93 |
89 |
89 |
88 |
86 |
78 |
101 |
|
|
6,3 |
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/78-А/0,55/1500/220-380 |
74 |
75 |
73 |
75 |
76 |
74 |
76 |
69 |
83 |
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/82-А/0,75/1500/220-380 |
77 |
75 |
73 |
73 |
72 |
73 |
75 |
69 |
83 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/86-А/1,1/1500/220-380 |
81 |
76 |
76 |
75 |
74 |
75 |
76 |
69 |
85 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/90-А/1,5/1500/220-380 |
82 |
79 |
77 |
76 |
76 |
75 |
76 |
69 |
87 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/97-А/2,2/3000/220-380 |
90 |
86 |
85 |
84 |
86 |
85 |
88 |
82 |
96 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/101-А/3,0/3000/220-380 |
90 |
87 |
85 |
85 |
84 |
83 |
87 |
82 |
95 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/57-А/4,0/3000/220-380 |
100 |
97 |
95 |
94 |
96 |
93 |
93 |
88 |
104 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/317-А/5,5/3000/220-380 |
93 |
88 |
88 |
88 |
87 |
87 |
88 |
84 |
98 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/305-А/7,5/3000/220-380 |
100 |
98 |
99 |
98 |
99 |
96 |
95 |
87 |
107 |
|
|
РОСА-SMF/10.20L/IW-6,3-ДУ400/120м-R4Z/6,3/AL/85-А/11,0/3000/380-660 |
97 |
92 |
92 |
91 |
90 |
91 |
92 |
85 |
101 |
|
|
7,1 |
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/74-А/0,75/1500/220-380 |
80 |
83 |
89 |
90 |
87 |
81 |
79 |
71 |
94 |
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/82-А/1,1/1500/220-380 |
78 |
78 |
76 |
78 |
77 |
77 |
80 |
73 |
87 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/182-А/1,5/1500/220-380 |
80 |
81 |
79 |
79 |
77 |
77 |
79 |
73 |
88 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/90-А/2,2/1500/220-380 |
84 |
82 |
81 |
79 |
78 |
79 |
80 |
76 |
90 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/94-А/3,0/1500/220-380 |
87 |
82 |
83 |
82 |
80 |
81 |
82 |
77 |
91 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/97-А/4,0/3000/220-380 |
95 |
91 |
95 |
100 |
99 |
94 |
93 |
87 |
105 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/101-А/5,5/3000/220-380 |
93 |
90 |
88 |
89 |
88 |
87 |
91 |
88 |
99 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/77-А/7,5/3000/220-380 |
96 |
99 |
99 |
103 |
101 |
98 |
97 |
91 |
108 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/81-А/11,0/3000/380-660 |
94 |
94 |
92 |
94 |
93 |
93 |
96 |
89 |
103 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/181-А/15,0/3000/380-660 |
96 |
97 |
95 |
95 |
93 |
93 |
95 |
89 |
104 |
|
|
РОСА-SMF/10.20L/IW-7,1-ДУ400/120м-R4Z/7,1/AL/201-А/18,5/3000/380-660 |
100 |
98 |
97 |
95 |
93 |
94 |
96 |
90 |
105 |
|
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/30-А/1,1/1500/220-380 |
85 |
92 |
93 |
95 |
93 |
87 |
86 |
82 |
100 |
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/34-А/1,5/1500/220-380 |
89 |
87 |
87 |
88 |
89 |
86 |
85 |
78 |
96 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/38-А/2,2/1500/220-380 |
92 |
89 |
88 |
85 |
86 |
84 |
84 |
74 |
96 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/42-А/3,0/1500/220-380 |
91 |
88 |
86 |
83 |
83 |
82 |
82 |
73 |
95 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/46-А/4,0/1500/220-380 |
91 |
88 |
86 |
83 |
83 |
82 |
81 |
74 |
95 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/22-А/5,5/1500/220-380 |
93 |
90 |
88 |
86 |
86 |
85 |
83 |
75 |
97 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/77-А/7,5/3000/220-380 |
99 |
102 |
106 |
109 |
106 |
100 |
98 |
92 |
113 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/81-А/11,0/3000/380-660 |
103 |
100 |
105 |
108 |
107 |
102 |
100 |
94 |
113 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/85-А/15,0/3000/380-660 |
100 |
99 |
101 |
101 |
101 |
99 |
100 |
93 |
109 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/125-А/18,5/3000/380-660 |
104 |
100 |
101 |
100 |
99 |
98 |
99 |
92 |
109 |
|
|
РОСА-SMF/10.20L/IW-8,0-ДУ400/120м-R4Z/8,0/AL/89-А/22,0/3000/380-660 |
106 |
100 |
101 |
98 |
96 |
96 |
98 |
91 |
110 |
|
|
9,0 |
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/146-А/1,5/1500/220-380 |
86 |
90 |
92 |
96 |
96 |
89 |
86 |
81 |
101 |
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/150-А/2,2/1500/220-380 |
92 |
89 |
88 |
88 |
89 |
87 |
87 |
80 |
98 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/410-А/3,0/1500/220-380 |
91 |
88 |
86 |
85 |
85 |
84 |
85 |
78 |
95 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/414-А/4,0/1500/220-380 |
90 |
87 |
85 |
83 |
82 |
81 |
82 |
75 |
94 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/158-А/5,5/1500/220-380 |
92 |
89 |
87 |
85 |
85 |
83 |
84 |
77 |
96 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/162-А/7,5/1500/380-660 |
93 |
90 |
88 |
88 |
86 |
86 |
86 |
80 |
97 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/22-А/11,0/1500/380-660 |
95 |
92 |
90 |
89 |
88 |
88 |
87 |
79 |
99 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/401-А/15,0/3000/380-660 |
104 |
102 |
100 |
99 |
98 |
96 |
98 |
95 |
109 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/177-А/18,5/3000/380-660 |
104 |
101 |
99 |
98 |
96 |
94 |
97 |
94 |
109 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/405-А/22,0/3000/380-660 |
106 |
103 |
101 |
99 |
97 |
96 |
98 |
95 |
110 |
|
|
РОСА-SMF/10.20L/IW-9,0-ДУ400/120м-R5Z/9,0/AL/185-А/30,0/3000/380-660 |
108 |
105 |
103 |
101 |
99 |
99 |
100 |
96 |
112 |
|
|
10,0 |
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/122-А/3,0/1500/220-380 |
89 |
96 |
99 |
99 |
96 |
90 |
89 |
84 |
104 |
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/126-А/4,0/1500/220-380 |
91 |
94 |
94 |
93 |
94 |
90 |
91 |
84 |
101 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/130-А/5,5/1500/220-380 |
91 |
94 |
95 |
92 |
92 |
89 |
90 |
82 |
101 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/134-А/7,5/1500/380-660 |
97 |
96 |
95 |
91 |
90 |
88 |
90 |
83 |
102 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/142-А/11,0/1500/380-660 |
100 |
97 |
95 |
91 |
90 |
89 |
89 |
82 |
104 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/86-А/15,0/1500/380-660 |
98 |
95 |
93 |
90 |
91 |
91 |
87 |
79 |
102 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/90-А/18,5/1500/380-660 |
99 |
96 |
94 |
90 |
91 |
90 |
87 |
80 |
103 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/94-А/22,0/1500/380-660 |
100 |
97 |
95 |
91 |
91 |
90 |
88 |
81 |
104 |
|
|
РОСА-SMF/10.20L/IW-10,0-ДУ400/120м-R5Z/10,0/AL/230-А/30,0/1500/380-660 |
101 |
98 |
96 |
92 |
93 |
91 |
88 |
82 |
105 |
|
|
11,2 |
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/123-А/3,0/1000/220-380 |
89 |
90 |
88 |
87 |
87 |
85 |
82 |
73 |
96 |
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/127-А/4,0/1000/220-380 |
93 |
91 |
89 |
87 |
87 |
85 |
81 |
73 |
97 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/15-А/5,5/1000/380-660 |
91 |
88 |
86 |
84 |
84 |
84 |
80 |
72 |
95 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/30-А/7,5/1500/380-660 |
99 |
96 |
94 |
95 |
95 |
93 |
91 |
81 |
104 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/122-А/11,0/1500/380-660 |
98 |
99 |
97 |
96 |
96 |
94 |
91 |
82 |
105 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/126-А/15,0/1500/380-660 |
102 |
100 |
98 |
96 |
96 |
94 |
90 |
82 |
106 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/226-А/18,5/1500/380-660 |
99 |
100 |
102 |
107 |
99 |
96 |
93 |
90 |
110 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/134-А/22,0/1500/380-660 |
100 |
101 |
103 |
108 |
100 |
97 |
94 |
91 |
111 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/230-А/30,0/1500/380-660 |
101 |
102 |
104 |
109 |
101 |
98 |
95 |
92 |
112 |
|
|
РОСА-SMF/10.20L/IW-11,2-ДУ400/120м-R5Z/11,2/AL/234-А/37,0/1500/380-660 |
102 |
103 |
105 |
110 |
102 |
99 |
96 |
93 |
113 |
|
|
12,5 |
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/55-А/3,0/1000/220-380 |
90 |
86 |
85 |
83 |
84 |
83 |
81 |
72 |
94 |
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/59-А/4,0/1000/220-380 |
88 |
85 |
83 |
81 |
81 |
81 |
79 |
71 |
92 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/63-А/5,5/1000/380-660 |
90 |
87 |
85 |
83 |
83 |
83 |
80 |
73 |
94 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/67-А/7,5/1000/380-660 |
93 |
90 |
88 |
85 |
85 |
84 |
83 |
75 |
96 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/02-А/11,0/1500/380-660 |
94 |
95 |
97 |
102 |
94 |
91 |
88 |
85 |
105 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/30-А/15,0/1500/380-660 |
102 |
99 |
97 |
96 |
97 |
95 |
91 |
82 |
106 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/06-А/18,5/1500/380-660 |
98 |
99 |
101 |
106 |
98 |
95 |
92 |
89 |
109 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/82-А/22,0/1500/380-660 |
100 |
101 |
103 |
108 |
100 |
97 |
94 |
91 |
110 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/86-А/30,0/1500/380-660 |
101 |
102 |
104 |
109 |
101 |
98 |
95 |
92 |
112 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/14-А/37,0/1500/380-660 |
102 |
103 |
105 |
110 |
102 |
99 |
96 |
93 |
113 |
|
|
РОСА-SMF/10.20L/IW-12,5-ДУ400/120м-R5Z/12,5/AL/18-А/45,0/1500/380-660 |
104 |
105 |
107 |
112 |
104 |
101 |
98 |
95 |
115 |
|
Электрические схемы подключения вентиляторов в сеть 380 В
Не представленные в наличии модели доступны к поставке под заказ
Оповестить о поступлении
Всю необходимую информацию также можно получить по телефону «горячей линии»
+ 7 800 200 93 96или по телефону
+7 800 505 08 67 получить консультацию
